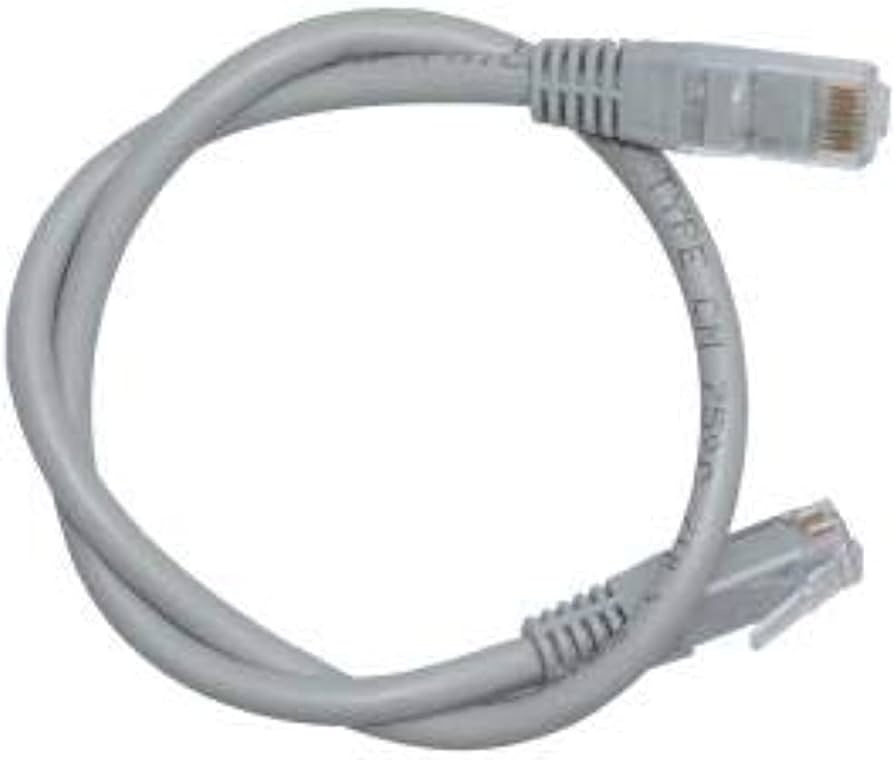

DLINK PATCH CORD NCB-6AUGRYR1-1 UTP CAT6A GRY 1M

Introducing the D-Link Cat6A 10G UTP 24 AWG PVC Round Patch Cord in a sleek Grey color, designed for exceptional performance and durability. Key Features:Length: 1Mtr: Perfect for short-distance connections, the 1-meter D-Link Cat6A Patch Cord offers a compact solution without compromising performance. 4 Pairs Unshielded Twisted Pair (UTP) Cable: Ensure reliable data transmission with the 4 pairs of Unshielded Twisted Pair (UTP) cable construction, minimizing electromagnetic interference for a clear and stable signal. Conductor Metal: Bare Copper: Enjoy enhanced conductivity and signal integrity with the use of bare copper conductors, ensuring top-notch performance for demanding networking applications. Conductor: 24 AWG: The 24 AWG conductor size strikes a balance between signal strength and flexibility, providing an ideal combination for high-speed data transfer and easy cable management. Jacket Material: PVC UL94V-0: The PVC UL94V-0 jacket material ensures durability and complies with safety standards, offering a flame-resistant and reliable cable for your network. Color Code: Grey: The sleek Grey color allows for easy identification and organization of your network connections, simplifying cable management and providing quick visual recognition. Part Number: NCB-6AUGRYR1-1: The unique part number NCB-6AUGRYR1-1 makes it easy to identify and order this specific D-Link Cat6A Patch Cord, ensuring you receive the precise product you need. Insulation Material: HD-PE: The High-Density Polyethylene (HD-PE) insulation material enhances the overall durability and protection of the cable. Gold Plated: 30U”: The gold-plated connectors with 30U” ensure superior connectivity and resistance to corrosion, maintaining optimal signal quality. Contact Blade: Phosphor Bronze: The use of phosphor bronze contact blades enhances durability and conductivity, ensuring a reliable and long-lasting connection. Temperature Range: -20 ~ 80oC: Designed to operate in a wide temperature range, from -20 to 80oC, this patch cord remains resilient in various environmental conditions. Durability and Strength: With a durability rating of 750 matching cycles and a cable-to-plug tensile strength of 20 lbs (89N) minimum, this patch cord is built to withstand frequent use and handling.

Product Specifications

•  4 Pairs Unshielded Twisted Pair (UTP) Cable
•  Conductor Metal: Bare Copper
•  Color Code: Gray
•  Conductor: 24 AWG
•  Insulation Material: HD-PE
•  Jacket Material: PVC UL94V-0
•  Heat-resistant: 60OC minimum (Temperature limited)
•  Flame property: The purpose of the vertical flame test is to screen out flammable wires. It follows the VW-1 (UL) and FT-1 (CSA) standards.

Modular Connector/Plug

•  RJ-45 8P for Transparence color
•  Gold plated: 30U”
•  Contact blade: Phosphor Bronze
•  Temperature range: -10 ~ 80o C
•  Dielectric withstanding voltage: 500V AC
•  Insulation resistance: 35M Ohm (max.)
•  Durability: 750 matching cycles
•  Cable-to-plug tensile strength: 20lbs (89N) (min.)
•  UL applications: 250V AC, 2A (max.) • Polycarbonate (PC) UL94-V-0

Application

• 10BASE-T, 100BASE-TX Fast Ethernet, 1000BASE-T (IEEE802.3)
• 100VG-AnyLAN (IEEE802.12)
• 550 MHz Broadband Video
• Voice, T1, ISDN
• 155/ 622 Mbps ATM
• Power over Ethernet (POE)
