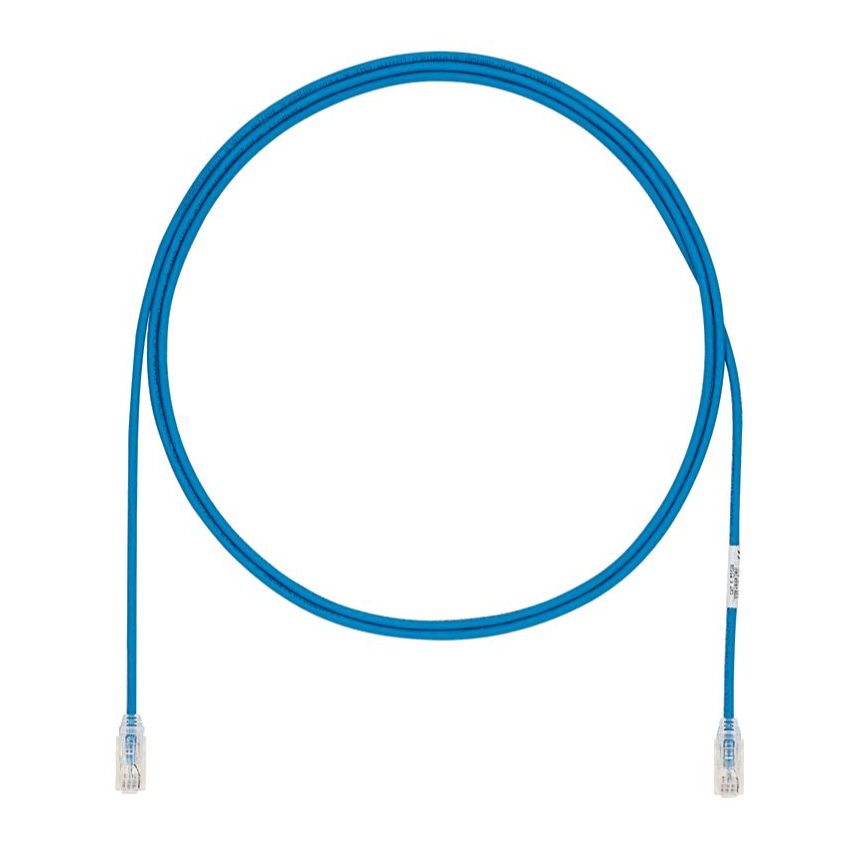

D-Link NCB-6AUBLUR1-1 Cat6A UTP 1M Patch Cord-Blue

this 1-meter patch cord is engineered to meet the demands of high-speed networking. The unique part number NCB-6AUBLUR1-1 makes it easy to identify and order this specific D-Link Cat6A Patch Cord, ensuring you receive the precise product you need. Insulation Material: HD-PE: The High-Density Polyethylene (HD-PE) insulation material enhances the overall durability and protection of the cable. Gold Plated: 30U”: The gold-plated connectors with 30U” ensure superior connectivity and resistance to corrosion, maintaining optimal signal quality. Contact Blade: Phosphor Bronze: The use of phosphor bronze contact blades enhances durability and conductivity, ensuring a reliable and long-lasting connection. Temperature Range: -20 ~ 80oC: Designed to operate in a wide temperature range, from -20 to 80oC, this patch cord remains resilient in various environmental conditions. Durability and Strength: With a durability rating of 750 matching cycles and a cable-to-plug tensile strength of 20 lbs (89N) minimum, this patch cord is built to withstand frequent use and handling.

Product Specifications

• Length:1M
• 4 Pairs Unshielded Twisted Pair (UTP) Cable
• Conductor Metal: Bare Copper
• Conductor: 24 AWG
• Jacket Material: PVC UL94V-0
• Color Code: Blue
• Insulation Material: HD-PE
• Heat-resistant: 75º C minimum
• RJ-45 8P for the Transparency color
• Gold plated: 30U”
• Contact blade: Phosphor Bronze
• Temperature range: -20 ~ 80oC
• Dielectric withstanding voltage: 500V AC
• Insulation resistance: 35M Ohm (max.)
• Durability: 750 matching cycles
• Cable-to-plug tensile strength: 20lbs (89N) (min.)
