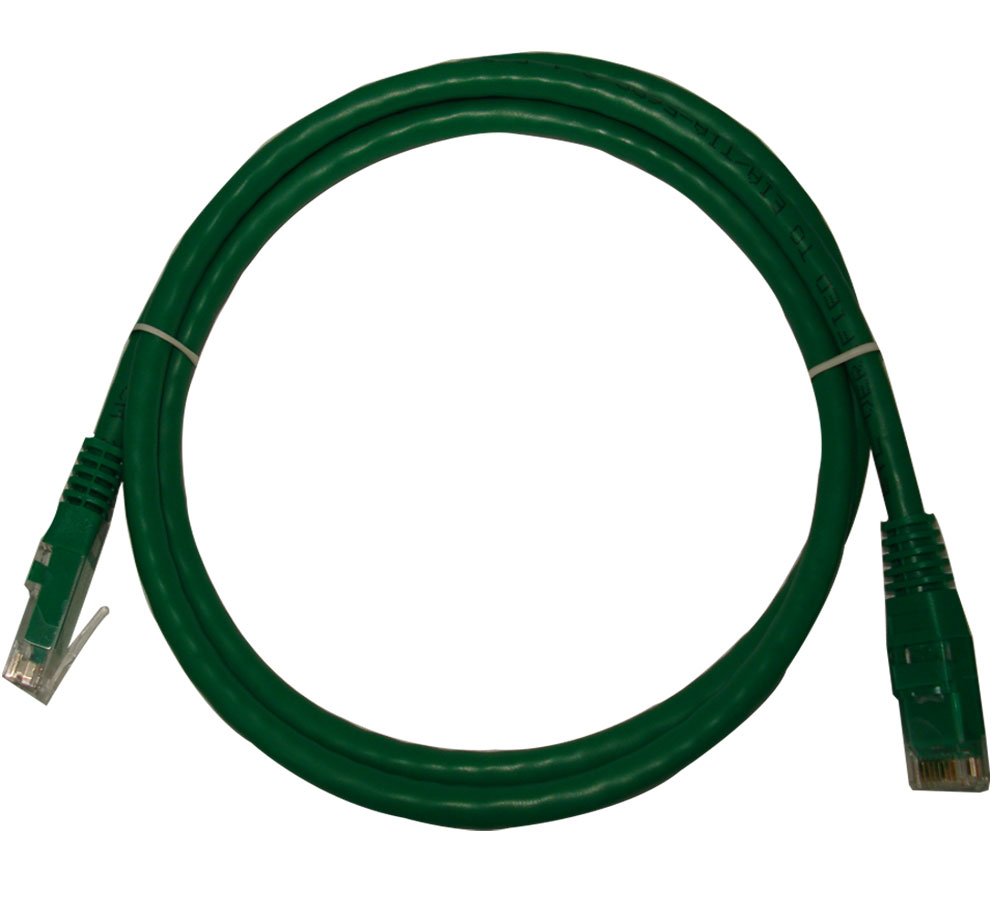

DLINK PATCH CORD ROUND NCB-C6UGRNR1-3 CAT6 3M GREEN

D-Link provides the best quality twisted-pair cable to transmit data through a local area network (LAN). This cable has passed the performance requirements specified by the TIA / EIA-568B.2, TIA / EIA-568C.2 and IEC 60603-7-4 standards.

Streaming video and multimedia via LAN is increasingly popular, users need faster data transfers and short waiting times. The D-Link cable is ideal for simple, cost-effective, and high-speed transmission performance. Supports a higher signal-to-noise ratio, providing better reliability for current applications and higher data rates for future applications.

CAT6 cables reduce crosstalk interference and system noise levels with 24 AWG insulation for copper cables which will increase performance. Can transmit data at 1000 Mbps (~ 1 Gigabit per second) with a frequency of 250 MHz and is suitable for 10BASE-T, Fast Ethernet 100BASE-TX and 1000BASE-T / 1000BASE-TX (Gigabit Ethernet) applications

Product Specifications

• Available in different lengths: 3m
• 4 Pairs Shielded Twisted Pair (STP) Cable
• Conductor Metal: Bare Copper
• Jacket Material: PVC UL94V-0
• Color Code: Green
• Heat-resistant: 75º C minimum
• RJ-45 8P for Transparence color
• Contact blade: Phosphor Bronze
• Temperature range: -20 ~ 80oC
• Dielectric withstanding voltage: 500V AC
• Insulation resistance: 35M Ohm (max.)
• Durability: 750 matching cycles
• Cable-to-plug tensile strength: 20lbs (89N) (min.)
