Sale!

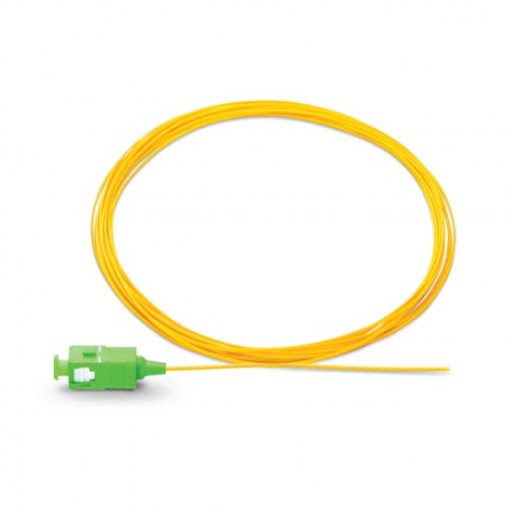

Simplex SC/UPC Single Mode Fiber Optic Pigtail
Original price was: KSh 200.00.KSh 150.00Current price is: KSh 150.00.
- Fiber Type: Single Mode (G.652.D, G.657A1, G.657A2)
- Insertion loss(dB): ≤0.2
- Temperature(C): -40~+80
- Repeatability(dB): ≤0.1
- Durability: ≥ 1,000
- Return loss(dB): PC≥45, UPC≥50, APC≥65
- Cable diameter(mm): Ø3.0, Ø2.0, Ø0.9
- Tensile Strength(N): ≥90N(OD:3.0), ≥ 70N (OD:2.0mm)
- Bend radius min.: 20mm @OD:0.9mm, 23mm @OD:2.0mm, 25.3mm@OD:3.0mm
Simplex SC/UPC Single Mode Fiber Optic Pigtail
Fiber optic pigtails provide a fast way to make communication devices in the field. They are designed, manufactured, and tested according to protocol and performance dictated by industrial standards, which will meet your most stringent mechanical and performance specifications.
Product Specification
| Connector A | SC | Connector B | Unterminated |
| Fiber Mode | 9/125 μm | Fiber Count | Simplex |
| Fiber Grade | G.652.D | Minimum Bend Radius | 30 mm |
| Polish Type | UPC | Cable Diameter | 0.9 mm |
| Cable Jacket | PVC | Jacket Color | Yellow |
| Wavelength | 1310 nm/1550 nm | Durability | 500 Times |
| Insertion Loss | ≤0.3 dB | Interchangeability | ≤0.2 dB |
| Return Loss | ≥50 dB | Vibration | ≤0.2 dB |
| Operating Temperature | -40~75°C | Storage Temperature | -45~85°C |
