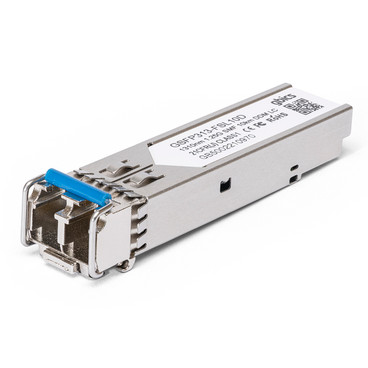

D-Link DEM-310GT 1000BASE-LX Mini-GBIC Gigabit Ethernet Module

D-Link Gigabit SFP Transceivers plug into Gigabit and Fast Ethernet switches via their GBIC slots. They allow for the expansion of Gigabit Ethernet networks by providing high-speed connections over a fiber-optic or twisted-pair cable. The fiber-optic transceivers have standard duplex LC connectors to provide maximum compatibility. They are hot-pluggable and Small Form Factor Pluggable (SFP) compliant with the Multi-Source Agreement (MSA) specification.

Product Specifications

• 1000Base-LX port (IEEE 802.3z standard)
• Duplex LC connector
• Full duplex operation
• 802.3x flow control support
• Fiber type: 9um single-mode fiber, up to 10 km.
• Wavelength: 1310 nm
• Power support: 3.3 V
• Power budget: 10.5 dB
• Hot pluggable
• Class 1 laser product (complies with EN60825-1)
• TTL signal detects an indicator
• Metal enclosure for lower EMI
