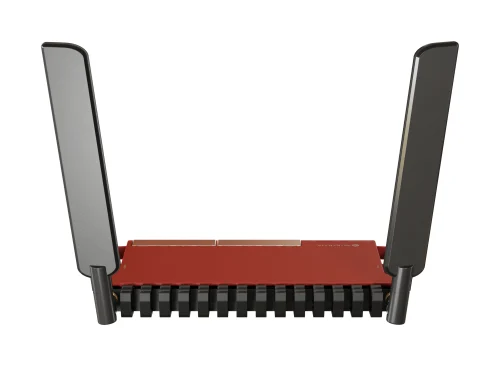

Mikrotik L009UiGS-2HaxD-IN wireless router Gigabit Ethernet Single-band (2.4 GHz) Red

Introducing the MikroTik L009UiGS-2HaxD-IN Wireless Router, your gateway to enhanced connectivity, powerful performance, and ingenious design innovations. This single-band (2.4 GHz) Gigabit Ethernet router, dressed in a striking red hue, marks a significant upgrade from the renowned RB2011 series, delivering up to 4 times faster speeds and a plethora of new features.

At its core, the L009 boasts a modern ARM CPU with container support, unleashing a new realm of possibilities for network customization and efficiency. Whether you’re delving into complex firewall configurations, implementing IPsec hardware encryption, or experimenting with advanced RouterOS features, the dual-core ARM CPU ensures seamless performance. Harness the power of the latest Linux Kernel features or embark on your container projects, all facilitated by the inclusion of a full-sized USB port.

Say goodbye to bottlenecks with the L009’s Gigabit Ethernet ports, ensuring lightning-fast data transfer rates across all connections. The inclusion of Power over Ethernet (PoE) support on the first port provides versatile power options, while the PoE-Out feature on the last port enables you to power additional devices with ease.

Furthermore, the L009 is equipped with an SFP cage supporting both Gigabit and 2.5 Gigabit connectivity, offering flexibility in your network setup. Experience the efficiency of the Marvell Peridot Switchchip, delivering a blazing 2.5 Gigabit full duplex connection to all ports except Ether1, ensuring smooth data flow without compromise.

In the wireless department, the L009 shines with its 2.4 GHz ax dual-chain wireless technology, offering up to 90% higher speeds compared to its predecessors. Enjoy enhanced signal stability and the ability to accommodate more clients, all while maintaining optimal responsiveness.

But the innovations don’t stop there—the L009 features an innovative enclosure reminiscent of the acclaimed RB5009 devices. Acting as a massive heat sink, this enclosure protects your setup from overheating while introducing a space-saving design element. With the option to mount up to four routers in a single 1U rackmount space, efficiency reaches new heights.

For those seeking a wireless-less solution without compromising on features, consider the L009UiGS-RM version. Retaining all the core functionalities of its wireless counterpart, this router provides a cost-effective alternative with all necessary mounting accessories included.

Upgrade to the MikroTik L009UiGS-2HaxD-IN Wireless Router and join the ranks of those revolutionizing network connectivity. Experience unparalleled performance, innovative design, and the reliability that MikroTik is renowned for—all in a vibrant red package.

Product Specifications

DETAILS
Product code	L009UiGS-2HaxD-IN
Architecture	ARM
CPU	IPQ-5018
CPU core count	2
CPU nominal frequency	800 MHz
Switch chip model	88E6190
RouterOS license	5
Operating System	RouterOS v7
Size of RAM	512 MB
Storage size	128 MB
Storage type	NAND
MTBF	Approximately 200’000 hours at 25C
Tested ambient temperature	-40°C to 70°C
Suggested price	$129.00

Wireless capabilities

DETAILS
Wireless 2.4 GHz Max data rate	574 Mbit/s
Wireless 2.4 GHz number of chains	2
Wireless 2.4 GHz standards	802.11b/g/n/ax
Antenna gain dBi for 2.4 GHz	4
Wireless 2.4 GHz chip model	IPQ-5018
Wireless 2.4 GHz generation	Wi-Fi 6
WiFi speed	AX600

Ethernet

DETAILS
10/100/1000 Ethernet ports	8
Number of 1G Ethernet ports with PoE-out	1

Fiber

DETAILS
SFP ports	1 (2.5G supported)

Peripherals

DETAILS
Serial console port	RJ45
Number of USB ports	1
USB Power Reset	Yes
USB slot type	USB 3.0 type A
Max USB current (A)	1.5

Powering

DETAILS
Number of DC inputs	2 (DC jack, PoE-IN)
DC jack input Voltage	24-56 V
Max power consumption	47 W
Max power consumption without attachments	14 W
Cooling type	Passive
PoE in	802.3af/at
PoE in input Voltage	24-56 V

PoE-out

DETAILS
PoE-out ports	Ether8
PoE out	Passive PoE
Max out per port output (input 18-30 V)	1 A
Max out per port output (input 30-57 V)	450 mA
Max total out (A)	1.0 A

Certification & Approvals

DETAILS
Certification	CE, FCC, IC, EAC, ROHS
IP	20

Other

DETAILS
Mode button	Yes

Wireless specifications

2.4 GHZ	TRANSMIT (DBM)	RECEIVE SENSITIVITY
1MBit/s	27	-100
11MBit/s	27	-94
6MBit/s	30	-96
54MBit/s	28	-80
MCS0	30	-96
MCS7	27	-75
MCS9	25	-70
MCS11	23	-67
