Sale!

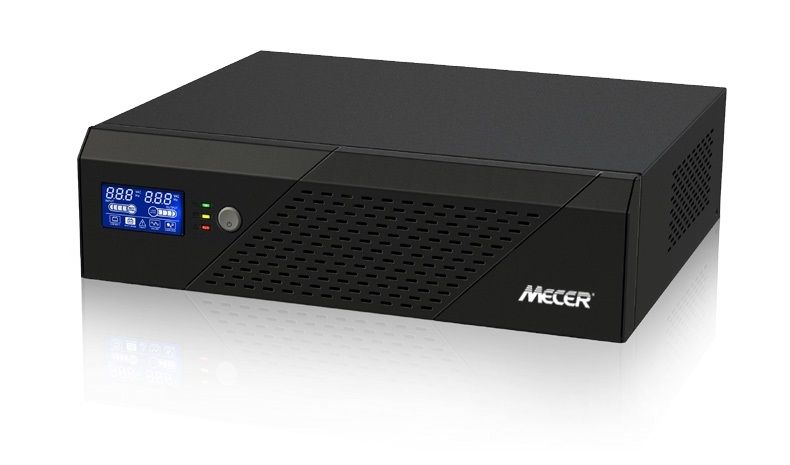

Mecer LOBO 1.2KVA Battery Bank

Original price was: KSh 112,000.00.Current price is: KSh 96,120.00.

• Simulated sinewave inverter

• Wide input voltage range

• 12VDC or 24VDC available

• Overload and short circuit protection

• LCD display for comprehensive information

• Optional solar charger

Category: Solar Batteries

Product Specifications

MODEL	IVR-1200LBKS	IVR-2400LBKS
CAPACITY	1200VA/ 720W	2400VA/ 1440W
INPUT
Voltage	230 VAC
Acceptable Voltage Range	90-280 VAC
Frequency	50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode)	± 10%
Efficiency (Peak)	82%	85%
Transfer Time	20 ms typical
Waveform (Batt. Mode)	Simulated sine wave
BATTERY & AC CHARGER
Battery Voltage	12 VDC	24 VDC
Floating Charge Voltage	13.7 VDC ±2%	27.4 VDC ±2%
Low Battery Alarm Voltage	10.2Vdc ±2%	20.4Vdc ±2%
Shutdown Voltage	9.9Vdc ±2%	19.8Vdc ±2%
Overcharge Protection	15.0Vdc ±2%	30.0Vdc ±2%
Maximum Charge Current	10 A or 20 A (Selectable)
SOLAR CHARGER (Optional) Solar Charge controller not included,will request to purchase separately
Maximum PV Array Open Circuit Voltage	40 VDC	60 VDC
Operating Voltage Range	15~18 VDC	30~32 VDC
Maxmum Solar Charge Current	50 A
PROTECTION
Full Protection	Overload, short circuit and polarity reserve protection
PHYSICAL
Dimension, D X W X H (mm)	300 x 360 x 88
Net Weight (kgs)	4.6	4.8
OPERATING ENVIRONMENT
Humidity	0 to 90% Relative Humidity(Non-condensing)
Operating Temperature	0℃ to 40℃
Storage Temperature	-15℃ to 50℃
