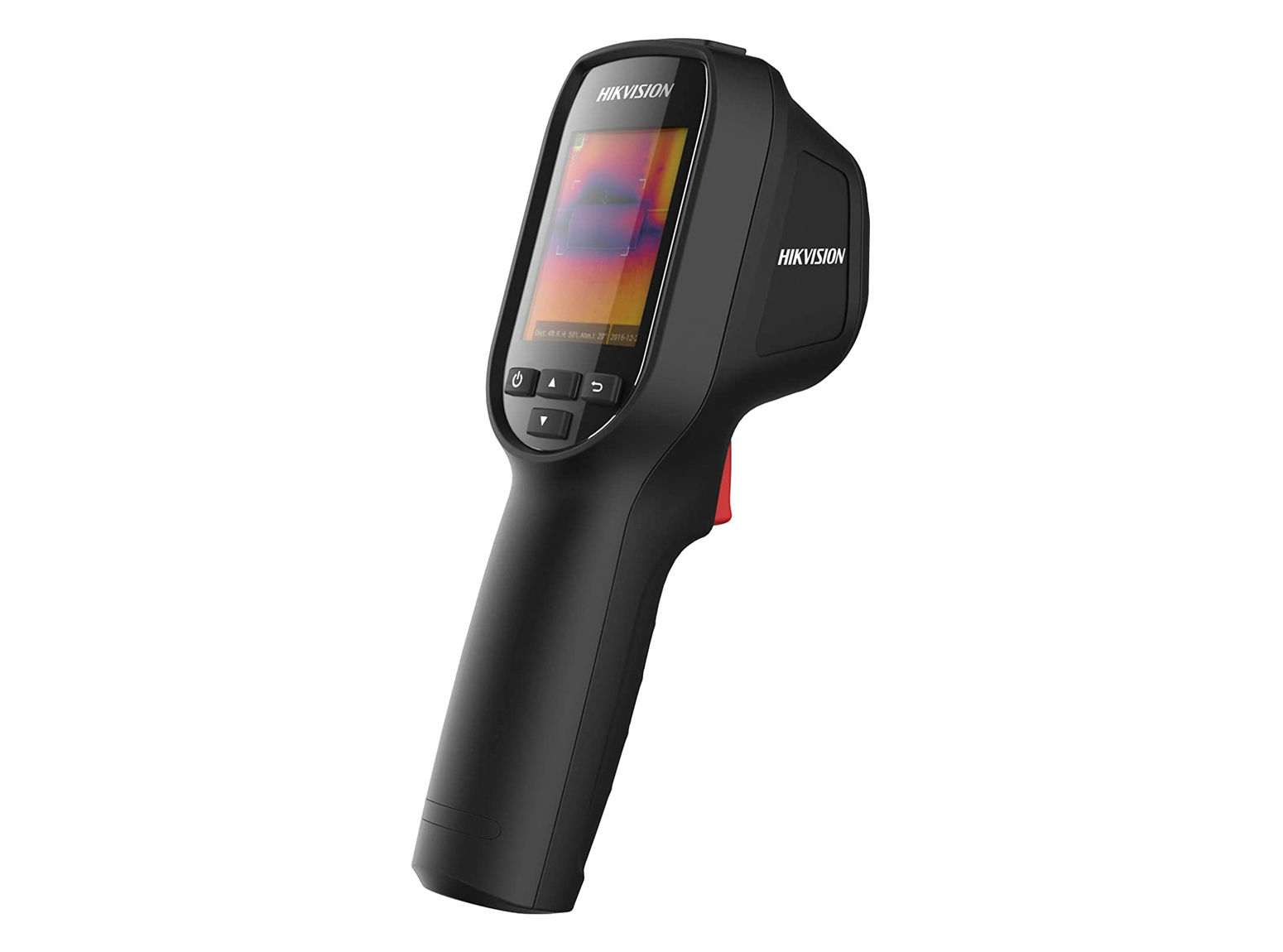

Hikvision DS-2TP31B-3AUF Handheld Thermography Camera

Product Features

• High-sensitivity sensor with 160 x 120 resolution
• High quality 320 x 240 resolution 2.4” LCD display
• Up to 4 palettes
• Wide temperature measurement range: 30°C – 45°C
• High-temperature measurement accuracy: Up to ±0.5° C
• Built-in rechargeable Li-ion battery
• Up to 8 hours of continuous operation

Product Specifications

Infrared Image

• Image SensorVOx Uncooled Focal Plane Arrays
• Resolution160×120
• Pixel Interval17μm
• Response Waveband8μm to 14μm
• NETDLess than 40 mK (@25°C,F#=1.1)
• Focal Length3.1mm
• Field Of View50° × 37.2° (H × V)
• IFOV5.48 mad
• Image Frequency25 hz
• ApertureF 1.1

Image Display

• Monitor320 × 240 resolution 2.4” LCD display
• PalettesBlack hot, White hot, Rainbow, Ironbow

• Measurement And Analysis
• Thermographic RangeFrom 30 °C to 45 °C
• Accuracy± 0.5 °C (Without Black Body)

General

• Hardware InterfaceMicro USB
• Power Supply3.7 V DC/0.4 A
• Power consumption less than 1.2 W
• Working Temperature10 °C to 35 °C
• Protection LevelIP54
• Weight350 g (0.77 lb)
• Dimension196 mm × 117 mm × 59 mm (7.7 ″ × 4.6 ″ × 2.3 ″)

System Function

• CaptureThermal image
• StorageReplaceable memory card (default 8G, support up to 128G storage)
• Battery TypeRechargeable Lithium Battery
• Battery Operating Time8 hours continuous running
