Eaton 9E 10kVA 1:1 and 3:1 (9E10Ki) Online Tower UPS 9E10Ki
Original price was: KSh 534,000.00.KSh 446,500.00Current price is: KSh 446,500.00.
- Online double conversion topology
- Intuitive user interface with an LCD panel that provides, on a single screen, clear information about UPS status
- Reliable UPS at an attractive price
- Provides more real power (watts) to protect more equipment with a 0.8 power factor
- Internal bypass and maintenance bypass are available as standards for service continuity
- Combo input (3:1 and 1:1) on the 10kVA, 15kVA, 20 kVA
- Long runtime with up to 4 optional EBM cabinets
- Extra-long runtime available with 3kVA, 10kVA and 20kVA XL models
- XL models with internal supercharger for extra-long runtime
- Communication through USB, RS232 serial or over the network with an optional communication card(Network card, ModBus/Jbus or Contacts/Serial cards)
- Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)
- CE compliance certified by external laboratory (CB report from the TUV)

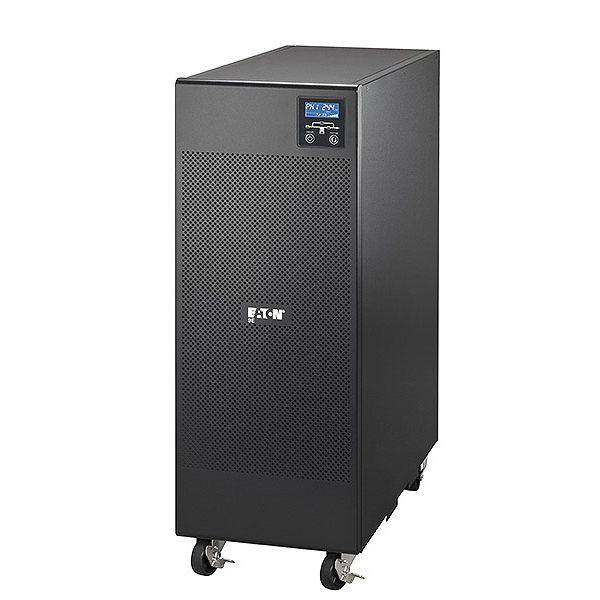

Eaton 9E 10kVA 1:1 and 3:1 (9E10Ki) Online Tower UPS 9E10Ki
The Eaton 9E is an online double-conversion power protection at an affordable price with compact yet robust construction. This UPS an ideal choice for industrial, medical and information technology (IT) applications and telecommunications.
Product Specifications
| General | |
| Topology | Online double conversion |
| Configuration | Tower |
| Part Number | 9E10Ki |
| Rating (VA/Watts) | 10000/8000 |
| Dimensions (H x W x D, mm) | 708.5 x 262.4 x 612.9 |
| Weight (kg) | 85.4 |
| Warranty | 1 year |
| Electrical Input | |
| Connection |
Hardwired – see manual for terminal block layout
|
| Input Voltage Range | 176-276V without derating (up to 110-276V with derating) |
| Nominal Voltage | 220/230/240V |
| Frequency | 50/60 Hz autoselection |
| Frequency Range | 45-66 Hz |
| Short Circuit Current | 137 A |
| Electrical Output | |
| Voltages | 220V/230V/240V ±2 % |
| Voltage THD | <3% |
| Outlets |
Hardwired – see manual for terminal block layout
|
| Overload Capacity | 105%-110% : 5min, 110%-130% : 1min, 130%-150% : 10s, >150% : 100ms |
| Efficiency (Normal Mode) | Up to 93% in Online mode, 97% in ECO mode |
| Output Frequency | 50/60 Hz autoselect |
| Communications | |
| Communication Ports | 1 USB port + 1 RS232 serial port (USB and RS232 ports cannot be used simultaneously) |
| Communication Slot | 1 slot for Network-M2, ModBus-MS or Relay-MS cards |
| Power Management Software | Intelligent Power Software |
| Environmental & Standards | |
| Audible Noise | <55dB |
| Operating Temperature | 0 to 40°C |
| Safety markings | IEC/EN 62040-1 |
| EMC Markings | IEC/EN 62040 -2 |
| Approvals | CE, CB report (TUV) |
Brand
Eaton
