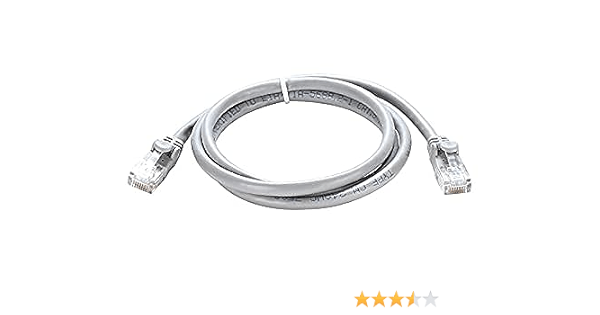

D-LINK / NCB-C6UGRYR1-10 / UTP PATCH CORD 10M CAT6

Product Specifications

•  4 Pairs Unshielded Twisted Pair (UTP) Cable
•  Conductor Metal: Bare Copper
•  Color Code: Gray
•  Conductor: 24 AWG
•  Insulation Material: HD-PE
•  Jacket Material: PVC UL94V-0
•  Heat-resistant: 60oC minimum (Temperature limited)

Modular  Connector/Plug

•  RJ-45 8P for Transparency color.
•  Gold plated: 50U”
•  Contact blade: Phosphor Bronze
•  Temperature range: -10 ~ 80o C •
•  Dielectric withstanding voltage: 500V AC
•  Insulation resistance: 35M Ohm (max.)
•  Durability: 750 matching cycles
•  Cable-to-plug tensile strength: 20lbs (89N) (min.)
•  UL applications: 250V AC, 2A (max.) • Polycarbonate (PC) UL94-V-0

Application

•  10BASE-T, 100BASE-TX Fast Ethernet, 1000BASE-T (IEEE802.3)
•  100VG-AnyLAN (IEEE802.12)
•  550 MHz Broadband Video • Voice, T1, ISDN
•  155/ 622 Mbps ATM • Power over Ethernet (POE)
