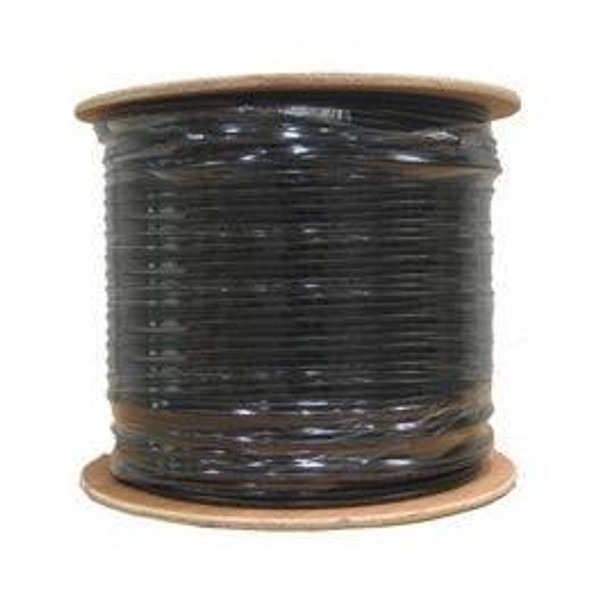

D-Link NCB-C6FOBLR-305 BL CAT6 FTP Cable 305M Roll

Product Features

• 4 Pairs Foilded Twisted Pair (FTP) Cable
• Conductor Metal: Solid Bare Copper with 23 AWG
• Shield: Aluminum Polyester Foil
• Color Code: Black
• Drain Wire: 26 AWG
• Jacket Material: Double sheath, PVC Inner Sheath, UV PVC Outer Sheath
• PE Central Cross separator

Product Specifications

• Mutual Capacitance: 5.6nF/100m nominal
• Characteristic Impedance: 100Ω±15%
• Nominal Velocity of Propagation: 69%
• Conductor Resistance:: < 9.38?/100m
• Resistance Unbalance:: 5 % Max
• Capacitance Unbalance:  330pF/100m
• Delay Skew:: < 45nS
• Conductor Diameter: 0.560mm Nominal
• Insulation Diameter: 1.14 Nominal
• Insulation Material: HD-PE
• Cable Diameter: 8.6mm Nominal
