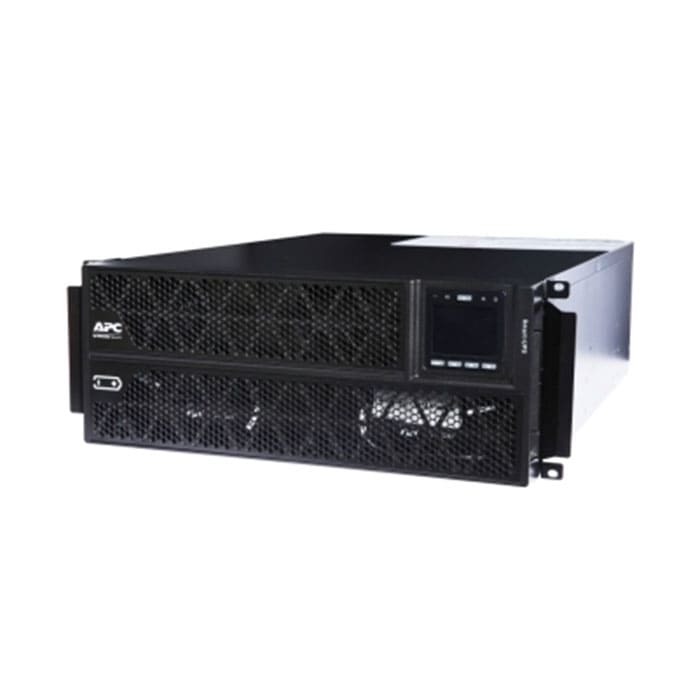

APC Smart-UPS RT 6kVA 230V- SRTG6KXLI

APC Smart-UPS On-Line, 6kVA/6kW, Rack/Tower, 230V, 2x IEC C13+1x IEC C19+Hard wire 3-wire (H+N+E) outlets, Network Card, W/O rail kit

Product features:

• Power Capacity: The UPS has a power capacity of 6000VA (6000 volt-amps) or 6000W (6000 watts). This means it can deliver up to 6000VA or 6000W of power to connected devices.
• Chassis Type: The UPS is designed to be rack-mountable and can also be used as a tower UPS. It occupies 4U (4 units) of rack space when mounted in a standard 19-inch equipment rack.
• Double Conversion Technology (Online): UPS uses double conversion technology, also known as online technology. This technology continuously converts incoming AC power to DC power and then back to AC power, providing a clean and stable power output to protect connected equipment from power fluctuations and disturbances.
• LCD Display: The UPS is equipped with an LCD display that provides real-time information about the UPS status, including input and output voltage levels, load capacity, battery charge level, and other relevant parameters. The display allows for easy monitoring and management of the UPS.
• Battery Backup: The UPS provides battery backup outlets to ensure continuous power supply during power outages or disruptions. These outlets are typically used to connect critical devices such as servers, networking equipment, storage systems, and other sensitive electronics.
• Surge Protection: In addition to battery backup, the UPS also offers surge protection to safeguard connected devices against power surges, spikes, and other electrical disturbances.
• Scalable Runtime: The UPS can be expanded with additional battery packs to increase the backup runtime as per your requirements. This allows for longer periods of backup power during extended outages.
• Advanced Management Capabilities: The UPS includes advanced management features, such as network management capabilities, which enable remote monitoring, configuration, and control of the UPS through a network connection.
• Hot-Swappable Batteries: The UPS is designed with hot-swappable batteries, allowing for easy and uninterrupted battery replacement without requiring downtime or powering off connected devices.
• Energy Efficiency: The UPS is designed to operate with high energy efficiency, helping to reduce power consumption and operating cost

Product Specifications

• Manufacturer Part Number: SRTG6KXLI
• Power Capacity: 6000VA (6000 volt-amps) or 6000W (6000 watts)
• Chassis Type: Tower/Rack Convertible
• Rack Units: 4U (occupies 4 units of rack space)
• Technology: Double Conversion (Online)

Input Specifications:

• Input Voltage: 230V
• Input Frequency: 40 – 70 Hz (auto-sensing)

Output Specifications:

• Output Voltage: 230V
• Output Frequency: 50/60 Hz (auto-sensing)
• Output Connections: 1 x Hard Wire 3-wire (H N + G), 4 x IEC 320 C19, 4 x IEC 320 C13

Battery and Runtime:

• Battery Type: Maintenance-free, sealed, lead-acid battery with suspended electrolyte
• Typical Recharge Time: 3 hours
• Runtime at Half Load: Varies depending on the connected load
• Runtime at Full Load: Varies depending on the connected load
• Battery Replacement: Hot-swappable batteries, allowing replacement without interrupting power to connected devices

Management and Communications:

• LCD Display: Provides real-time UPS status information and configuration options
• Control Panel: LED status indicators and buttons for UPS control and configuration
• Audible Alarm: Audible alarms for various UPS conditions and events
• Communication Ports: 1 x USB, 1 x Serial (RS-232), 1 x SmartSlot for optional network management card
• Network Management: Compatible with APC SmartSlot network management cards for remote monitoring and control
• Software: Supports APC PowerChute software for UPS management and graceful shutdown of connected devices

Physical Specifications:

• Dimensions (H x W x D): 174 x 438 x 662 mm (6.85 x 17.24 x 26.06 inches)
• Weight: 48 kg (105.8 lbs)
• Operating Temperature: 0 to 40°C (32 to 104°F)
• Storage Temperature: -15 to 45°C (5 to 113°F)
• Operating/Humidity Range: 0-95% non-condensing
• Noise Level: Less than 55 dB at 1 meter

Certifications and Standards:

• Safety: CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2
• EMC: CE, EAC, EN/IEC 62040-2, FCC Part 15 Class A
