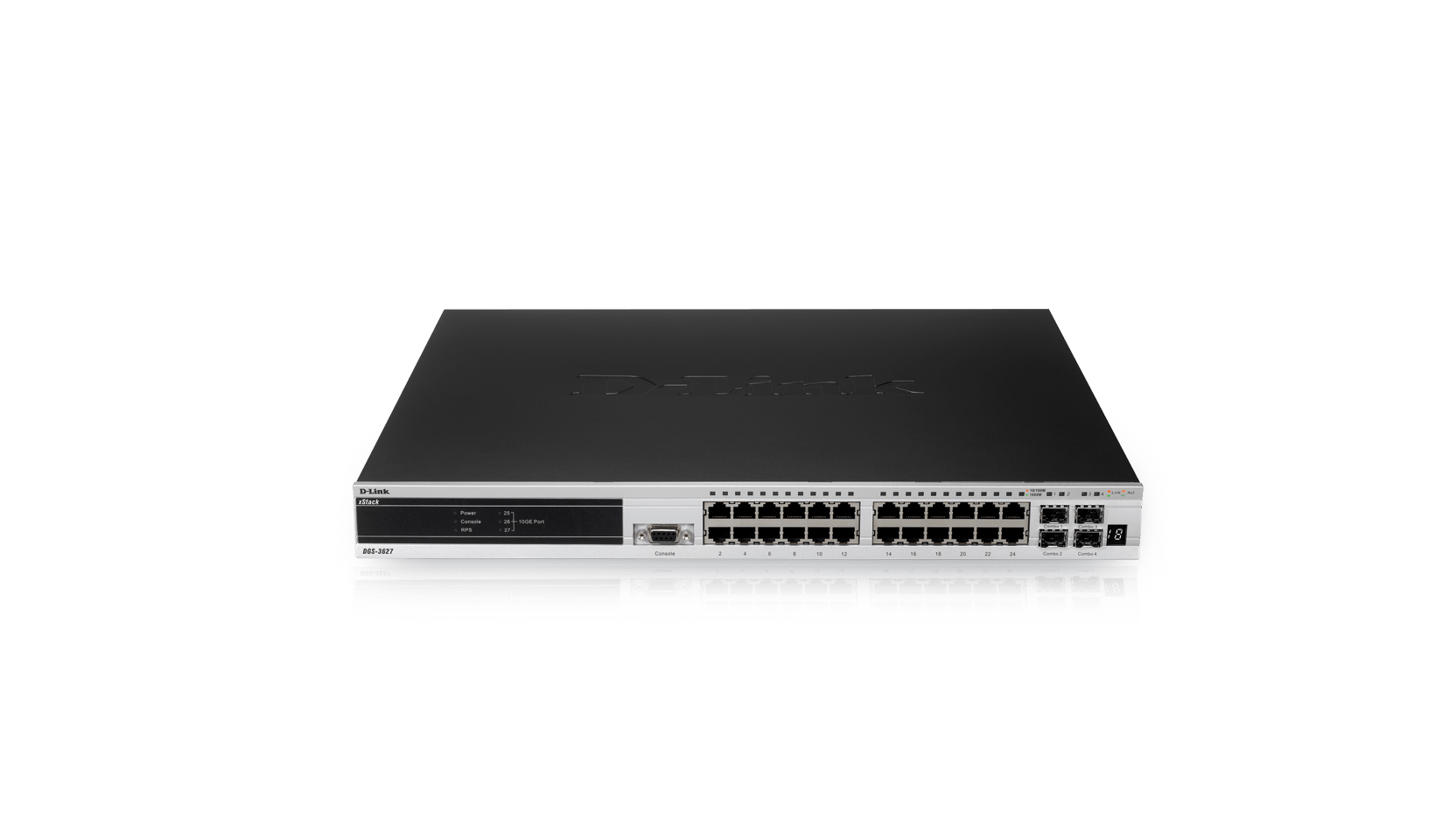

24-Port xStack L3 SFP Stackable Managed Switch with Optional 10 Gigabit Uplinks DGS-3627G

The xStack DGS-3600 series of next generation Layer 3 Gigabit switches delivers performance, flexibility, security, multi-layer QoS and access, and redundant power option for SMB and enterprises. With high Gigabit port densities, SFP support, and advanced software functions, these switches can act as departmental accesslayer devices or core switches to form a multi-level network structured with high-speed backbone and centralized servers. Telecom service providers can also take advantage of the high SFP density switches to form the core of their Fiber to the building (FTTB) network that extends to the subscribers’ sites.

Product Features

Unparalleled Flexibility.

Easy to deploy and simple to managed, the DGS-3600 series can be stacked with any switches supporting D-Link’s Single IP Management to form a multi-level network structured with backbone and centralized high-speed servers. This virtual stack can comprise units located anywhere on the same network domain. It can eliminate single points of failures, cable distance barriers, physical stacking method limitations and the need for stacking cabling.

Stackable Up to 12 Units

The DGS-3627G switch has two optional ports to install stacking modules that provide up to 40Gbps in data stacking backplane, full-duplex. This enhances your overall network performance for switches transmitting large files such as graphics or pictures. Under stacking mode, the switches are hot-swappable. This means that in a stack configuration, any of the switches can be replaced or removed without affecting the network. There is no need to reconfigure a replacement switch; just give the new switch the same stack number ID as the old switch and the network will carry the same configuration as before. This minimizes network downtime and maximizes the productivity of your business. Also, to facilitate network administration, cross stack port mirroring and port trunking are supported.

Security, Performance & Availability.

The DGS-3600 series provides a complete set of security features, which includes L2/L3/L4 multi-layer Access Control Lists and 802.1x user authentication via TACACS+ and RADIUS servers. In addition, it offers suppression capabilities and Layer 3 IP v4/v6 Static Routing to increase network performance and security. Built-in D-Link ZoneDefense2 technology allows business to integrate the switch stack with D-Link NetDefend firewalls to implement a full coverage, proactive security architecture.

The DGS-3600 series offers extensive VLAN support including GARP/GVRP and 802.1Q VLAN to enhance security and performance. To support converged applications including VoIP, ERP, Intranet and video conference, a robust set of L2/L3/L4 QoS/CoS features ensures that critical network services are served with proper priority. To prevent malicious flooding traffic caused by worm/virus infections, the DGS-3600 series provides D-Link Safeguard Engine to increase the switch’s reliability, serviceability and availability. Bandwidth Control can be flexibly set for each port using pre-defined thresholds to assure a committed level of service for end users. For advanced applications, per-flow bandwidth control allows easy fine-tuning of service types based on specific IP addresses or protocols.

Product Specifications

Interface
– 24 SFP Slots
– 4 Combo 10/100/1000BASE-T Ports
– 3 Open Slot for 10-Gigabit Uplink Modules
– RS-232 Console Port

Physical Stacking
Installable Module for Stacking
Single-Port DEM-410CX

Max Number of Stacking Ports Installable
2 CX4 Ports

Stacking Speed (Per Port)
20Gbps (Full-Duplex)

No. of Units Per Stack
12*

Switch Fabric
108Gbps

Packet Forwarding Rate
80.36Mpps

Packet Buffer
2MB

MAC Address Table
16K Entries

IP v4/v6 Routing Table
12K Entries

IP v6 Routing Table
6K Entries

IP v4 Host Table
8K Entries

IP v6 Host Table
4K Entries

Jumbo Frame Size
9,216 Bytes

Power Supply

100 to 120VAC, 200 to 240VAC, 50/60Hz, Internal Power Supply

Power Consumption (Max.)
77.0 Watts

Heat Dissipation
262.74 BTU/Hr

Dimensions
441 x 389 x 44 mm

Size
19-Inch Rack-Mount Width, 1U Height

Weight (Without Optional Module)
5.5 kg

Operating Temperature
0 to 40 C

Storage Temperature
-10 to 70 C

Operating Humidity
10% to 90% RH

Storage Humidity
5% to 90% RH

EMI
FCC Class A, CE, C-Tick,VCCI

Safety
cUL, CB

MTBF
88,685 hours
